XW2B (Standard-type)

產品特色

Simplifies Connector and terminal block replacement, and requires less in-panel wiring.

商品洽詢

- 產品描述 - 種類額定/性能外觀尺寸型錄 CAD

• Mount to DIN Track or via screws.

• MIL Flat Cable Connectors and Multi-pole, Square Connectors are standard.

• Terminal blocks available with either M3 or M3.5 screws.

• Connecting Cables for Programmable Controllers available (sold separately).

Connectors

Type	Terminal Block	Connector	No. of poles	Model
Flat Cable	Terminal block with M3 screws	Flat Cable Connectors *1	20	XW2B-20G4
			34	XW2B-34G4
			40	XW2B-40G4
			50	XW2B-50G4
			60	XW2B-60G4
	Terminal block with M3.5 screws		20	XW2B-20G5
			34	XW2B-34G5
			40	XW2B-40G5
			50	XW2B-50G5
			60	XW2B-60G5
Twin-connector	Terminal block with M3.5 screws		40	XW2B-40G5-T
Daisy Chain	Terminal block with M3.5 screws		20	XW2B-20G5-D
Multi-pole, Square Connector	Terminal block with M3 screws	Multi-pole, Square Connector Plugs *2	20	XW2B-20Y4
			34	XW2B-34Y4
			50	XW2B-50Y4
	Terminal block with M3.5 screws		50	XW2B-50Y5

*1. Flat Cable Connectors have one polarity slot.
*2. These Plugs and Sockets are made by Honda Tsushin Kogyo.

Accessories (Order Separately)

Connecting Cables for Connector-Terminal Block Conversion Units

For details on the Connecting Cable used between XW2B Daisy Chain-type Connectors, refer to the XW2Z datasheet.

Type	XW2B-[][]G[] Flat Cable Units	XW2B-[][]Y[] Multi-pole, Square-connector Units	XW2B-40F5-P Board I/O Unit
Rated current	1 A
Rated voltage	125 VAC
Insulation resistance	100 M Ω min. (at 500 VDC)
Dielectric strength	500 VAC for 1 min (leakage current: 1 mA max.)
Ambient operating temperature	0 to 55 ° C

（單位：mm）

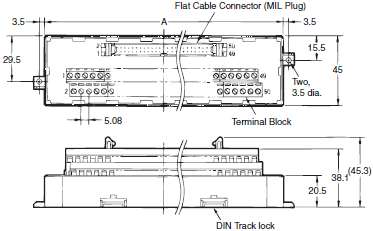

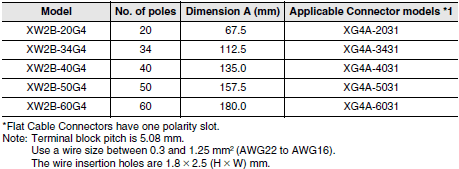

Flat Cable Units with a Terminal Block with M3 Screws
XW2B-[][]G4

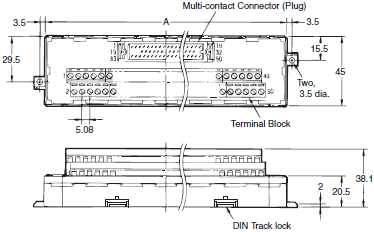

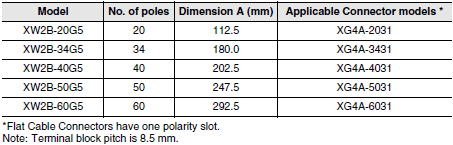

Flat Cable Units with a Terminal Block with M3.5 Screws
XW2B-[][]G5

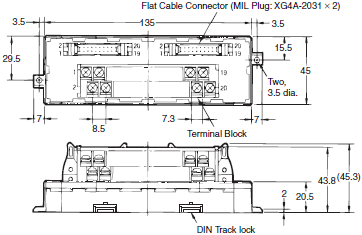

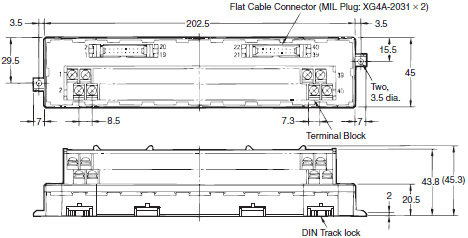

Twin-connector Units with a Terminal Block with M3.5 Screws
XW2B-40G5-T

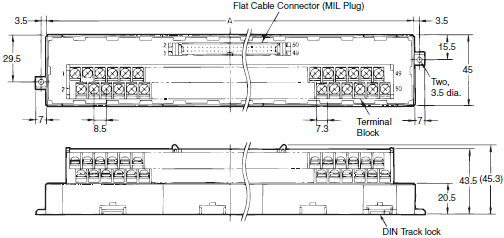

Daisy Chain Units with a Terminal Block with M3.5 Screws
XW2B-20G5-D

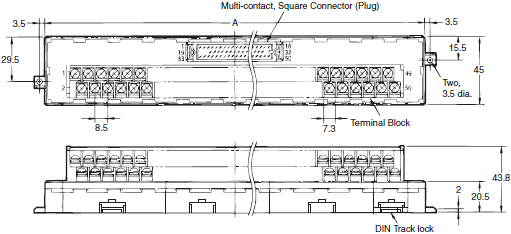

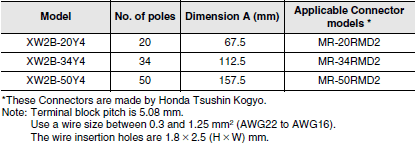

Multi-pole, Square-connector Plug Units with a Terminal Block with M3 Screws
XW2B-[][]Y4

Multi-pole, Square-connector Plug Units with a Terminal Block with M3.5 Screws
XW2B-50Y5

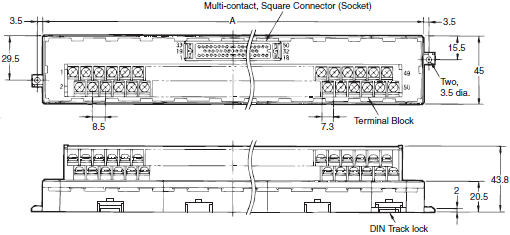

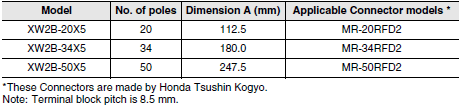

Multi-pole, Square Connector Socket Units with a Terminal Block with M3.5 Screws
XW2B-[][]X5

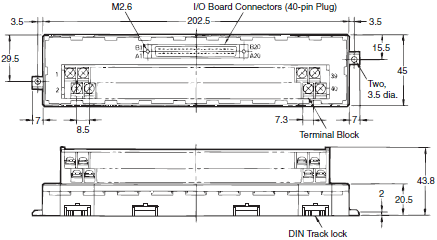

Board I/O Units with a Terminal Block with M3.5 Screws
XW2B-40F5-P

English

Global Edition

以下是海外共通的產品型錄，其中可能包含不在台灣銷售的型號。

在台灣訂購時請注意確認。

※若型錄PDF檔案太大，建議按滑鼠右鍵＂另存目標＂下載。
Catalog Name	Catalog Number [size]	Last Update
XW2B Data Sheet	- [1629KB]	Jun 22, 2017 20170622	XW2B Data Sheet
Table of PLC I/O Unit Connection Correspondance	G154-E1-01 [1466KB]	Oct 11, 2022 20221011	Table of PLC I/O Unit Connection Correspondance
