• For 16 inputs only.

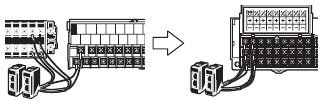

• The three-tiered terminal block simplifies wiring because the power supply terminal block is wired with just one crimp terminal.
XW2E
產品特色
A common terminal is provided for device power supply and the three-tiered structure means easier wiring.
Connector-Terminal Block Conversion Unit
| No. of inputs | No. of poles | Model | Mounted Connector model | Cable Connector model |
|---|---|---|---|---|
| 16 | 20 | XW2E-20G5-IN16 | XG4A-2031 | XG4M-2030-T |
| Rated current | 1 A |
|---|---|
| Rated voltage | 12 to 24 VDC |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 500 VAC for 1 min (leakage current: 1 mA max.) |
| Ambient operating temperature | 0 to 55 ° C |

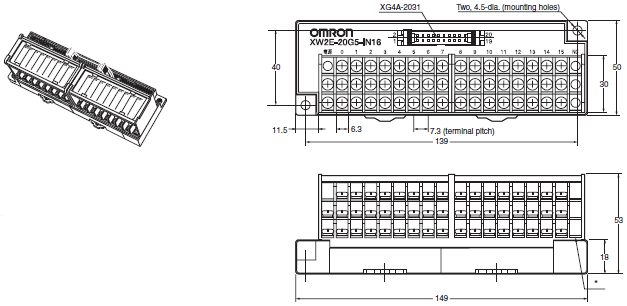

（單位：mm）
XW2E-20G5-IN16
* This is not a row of terminals.
English
Global Edition
| Catalog Name | Catalog Number [size] |
Last Update | |
|---|---|---|---|
 XW2E Data Sheet |
- [344KB] |
Nov 26, 2008
20081126
|
XW2E Data Sheet |
