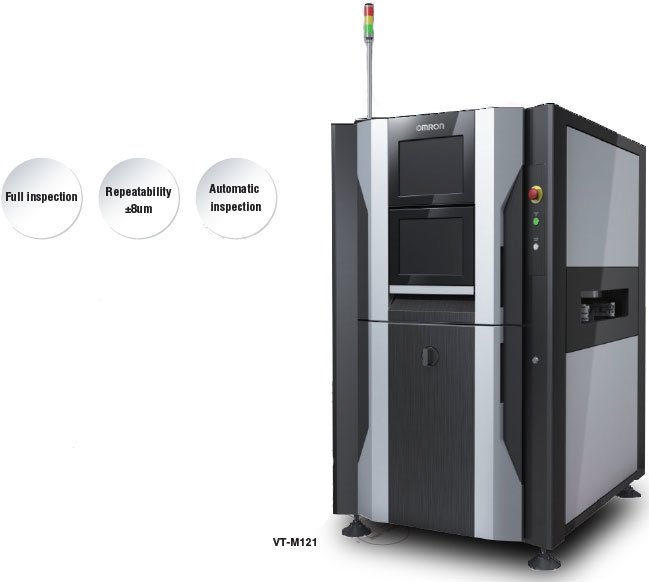

VT-M12 Series
產品特色

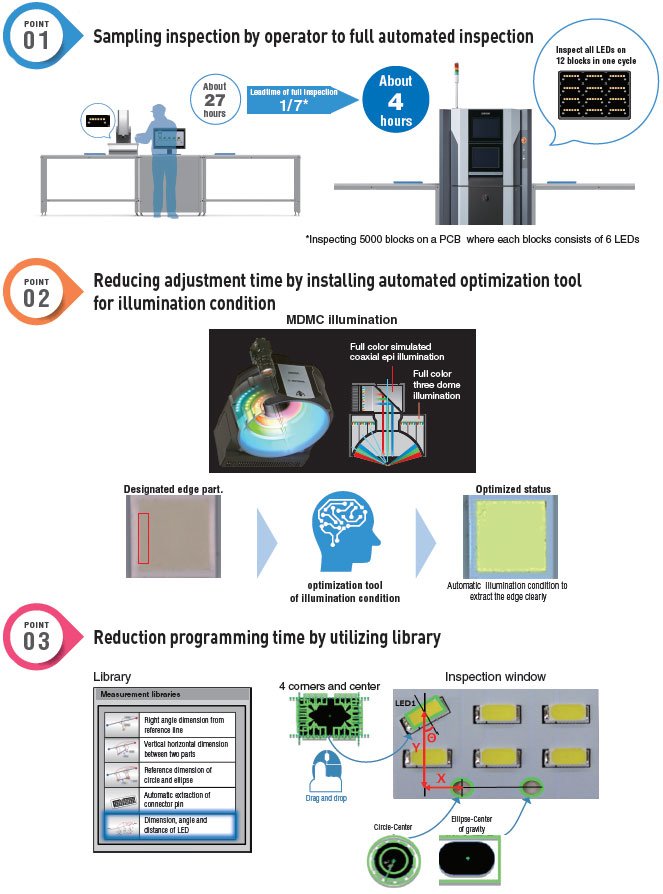

It's the beginning of a revolutionary automatic full inspection which makes “ZERO DEFECT” possible. 2D dimension and visual inspection at the same time!
| Item | VT-M121-6 | VT-M121-10 | ||
|---|---|---|---|---|
| Installation part |
Power supply voltage | (Single phase) allowable variation range | ||
| Operating air pressure/Flow rate | 0.3～0.6MPa | |||
| Operating air temperature range | 10～35℃ | |||
| Operating humidity range | 35～80%RH (No condensation) | |||
| External dimensions (WxDxH) | 910 x 1234 x 1600mm *Not including the protrusion, signal tower | |||
| Weight | Approximately 520kg | |||
| Mechanism part |
Carrier system | Belt conveyor carrier system with width adjustment mechanism | ||
| Carrier height | from floor surface 900±20mm *Adjust by adjuster foot | |||
| Conveyor width adjustment | 50～460mm | |||
| Carrier clearance | Top 55mm, Bottom 50mm | |||
| Inspection range (XxYxZ) | 510 x 460 x 60mm | |||
| Allowable carrier height | Less than 4kg | |||
| Illumination part |
Camera | 1200 mega pixel CMOS camera (FH-SCX12) | ||
| Pixel resolution | 6μm/Pixel | 10μm/Pixel | ||
| Depth of eld | Approximately 1mm | Approximately 3mm | ||
| Illumination | MDMC Illumination (FL-MD180MC, Full color simulated coaxial epi illumination + Full color three dome illumination) |
|||
| Inspection function |

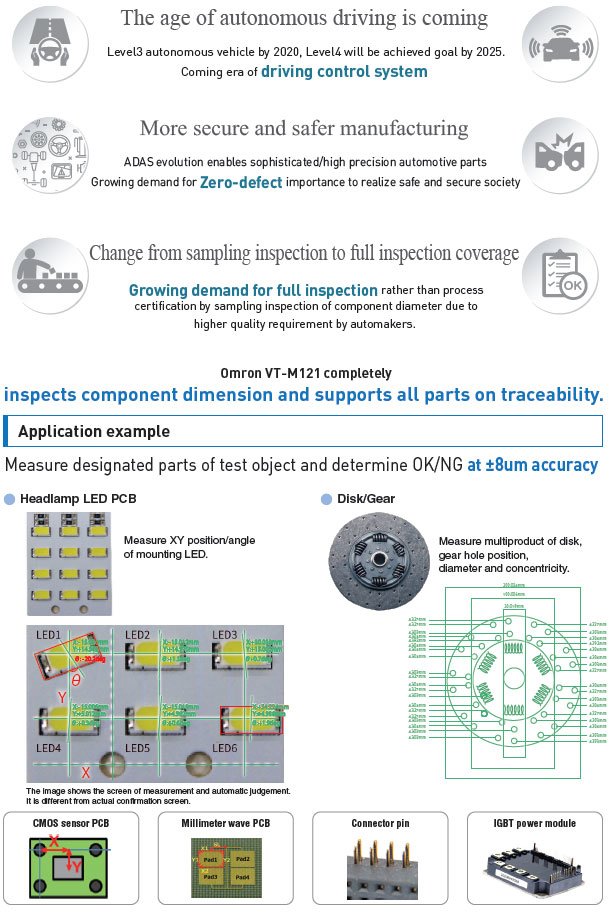

Test object | LED PCB, CMOS sensor PCB, Ceramic PCB, Millimeter wave radar, Aluminium PCB, IGBT power module, Metal processed product, Connector, Motor stator |
||
| Object size | Min. 50mm x 50mm～Max. 510mm x 460mm | |||
| Inspection item |
Dimension measurement |
Component position, Component rotation, Component distance, Terminal distance, External dimensions ,Concentricity, Hole diameter.. |
||
（單位：mm）

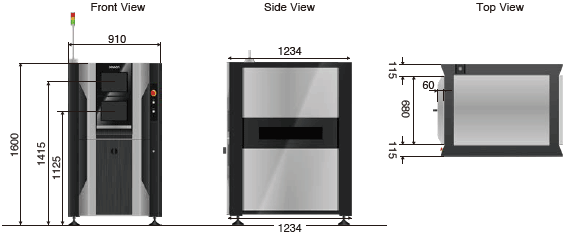

Machine size
VT-M121-6
VT-M121-10
