• Portable Power Supply Unit with built-in battery for Sensors
• Check sensor operation via buzzer and LED indicator.
• Low battery indicator for easy battery maintenance.
• Clear plastic pocket for business card or other identification.
E39-VA
產品特色
Handheld Power Supply to Check Sensor Operation
| Model |
|---|
| E39-VA |
Note: Two 9-VDC dry-cell batteries are included.
Ratings
| Power supply voltage | 18 V (use two 9-V dry-cell batteries) |
|---|---|
| Input configuration | Operates when the output transistor of the Sensor turns ON. |
| Ambient temperature | Operating: 0° to 40°C |

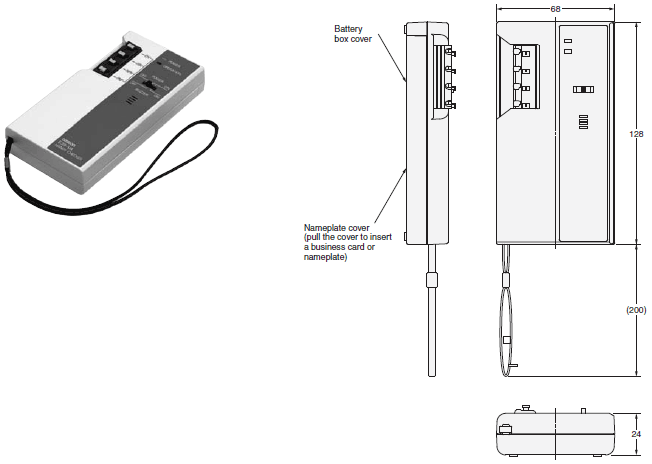

（單位：mm）
Unless otherwise specified, the tolerance class IT16 is used for dimensions in this data sheet.
E39-VA
English
Global Edition
| Catalog Name | Catalog Number [size] |
Last Update | |
|---|---|---|---|
 E39-VA Data Sheet |
- [699KB] |
Sep 04, 2020
20200904
|
E39-VA Data Sheet |
