產品特色

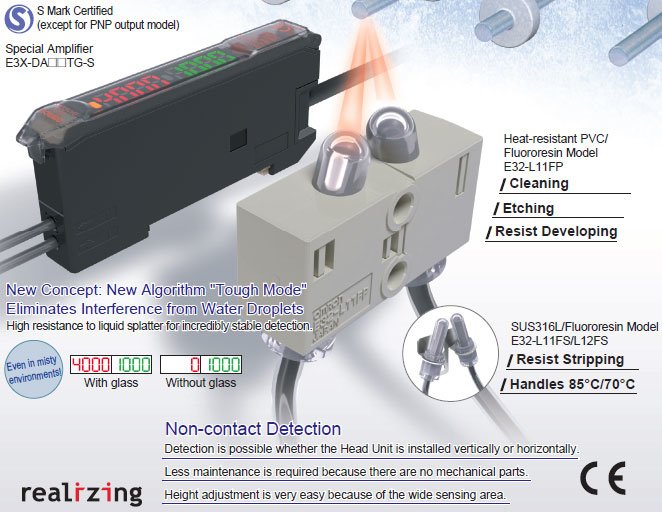

Stable Detection of Glass in Wet Processes. Non-contact Operation Simplifies Mounting and Maintenance.

商品洽詢

- 產品描述 - 種類額定/性能外觀尺寸型錄操作手冊 CAD

Type	Appearance (mm) *	Sensing distance (mm)	Standard object	Min. bending radius (mm)	Features	Model
Limited- reflective	(Free-cut)	8 to 20 mm from the lens tip (recommended sensing distance: 11 mm) 19 to 31 mm from the center of mounting hole A (recommended sensing distance: 22 mm) (See the dimension drawings.)	Glass (t = 0.7 mm)	R40	Materials: Heat-resistant PVC and fluororesin IP67 at 60°C	E32-L11FP 2M
	(Free-cut)				Materials: Heat-resistant PVC and fluororesin IP67 at 60°C	E32-L11FP 5M
	(Free-cut)	8 to 20 mm from the lens tip (recommended sensing distance: 11 mm) 32 to 44 mm from the center of mounting hole A (recommended sensing distance: 35 mm) (See the dimension drawings.)			Materials: SUS316L and fluororesin IP67 at 85°C	E32-L11FS 2M
					Materials: SUS316L and fluororesin IP67 at 85°C	E32-L11FS 5M
					Materials: SUS316L and fluororesin IP67 at 70°C	E32-L12FS 2M
					Materials: SUS316L and fluororesin IP67 at 70°C	E32-L12FS 5M

* (Free-cut) Indicates models that allow free cutting.

Amplifier Units

Appearance	Connection method	Functions	Model
Appearance	Connection method	Functions	NPN output	PNP output
	Pre-wired model (2 m)	Tough Mode Super Tough Mode ON-delay and OFF-delay timer	E3X-DA11TG-S 2M *	E3X-DA41TG-S 2M *

* Production was discontinued.

Model	E3X-DA11TG-S	E3X-DA41TG-S
Output	NPN open-collector output	PNP open-collector output
Power supply voltage	12 to 24 VDC ±10%, ripple (p-p) 10% max.
Power consumption	960 mW max. (current consumption: 40 mA max. at power supply voltage of 24 VDC)
Control output	Load power supply voltage: 26.4 VDC, load current: 50 mA max.; residual voltage: 1 V max.
Response time	Tough Mode (TG): Operate/reset in 16 ms each, Super Tough Mode (STG): Operate/reset in 64 ms each Standard Mode (STND): Operate/reset in 1 ms each, High-resolution Mode (HRES) Operate/reset in 4 ms each
Timer function	ON-delay/OFF-delay timer, OFF-delay timer, ON-delay timer, one-shot timer

Note 1: The factory settings are as follows: Tough Mode with an ON-delay/OFF-delay timer.
2: Be sure to check the chemicals and sprays used in the ambient environment before using the Wet Sensor.

（單位：mm）

E32-L11P

E32-L11FP / L1[]FS, E3X-DA[][]TG-S 外觀尺寸 1

E32-L11FS
E32-L12FS

E32-L11FP / L1[]FS, E3X-DA[][]TG-S 外觀尺寸 2

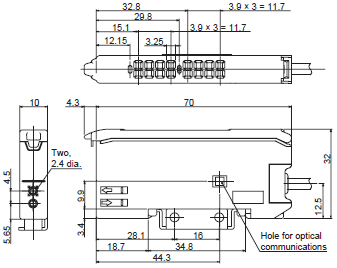

E3X-DA11TG-S
E3X-DA41TG-S

E32-L11FP / L1[]FS, E3X-DA[][]TG-S 外觀尺寸 3
