• Prevents diffused reflection.
• Available for lenses for C-mount cameras.
3Z4S-LE Series
產品特色
Lens options including Extension Tubes and Rear Converter Lenses.
Polarizing Filter SV-PL Series
Protection Cover Filter SV-GA Series
• Used to protect lens surface from dust.
• Available for lenses for C-mount cameras.
Polarizing Filter SV-PL Series
| Item | Size | Anti-rotation mechanism: Provided | Anti-rotation mechanism: Not provided | ||
|---|---|---|---|---|---|
| Model | Weight (g) | Model | Weight (g) | ||
| Polarizing Filter |
M22.5 P0.5 | 3Z4S-LE SV-PL225-SS | 5 | - | - |
| M25.5 P0.5 | 3Z4S-LE SV-PL255-SS | 6 | 3Z4S-LE SV-PL255 | 5.5 | |
| M27.0 P0.5 | 3Z4S-LE SV-PL270-SS | 6.5 | 3Z4S-LE SV-PL270 | 6 | |
| M30.5 P0.5 | 3Z4S-LE SV-PL305-SS | 8 | 3Z4S-LE SV-PL305 | 7.5 | |
| M34.0 P0.5 | 3Z4S-LE SV-PL340-SS | 10 | 3Z4S-LE SV-PL340 | 9.5 | |
| M35.5 P0.5 | 3Z4S-LE SV-PL355-SS | 10 | 3Z4S-LE SV-PL355 | 9.5 | |
| M37.5 P0.5 | 3Z4S-LE SV-PL375-SS | 12 | 3Z4S-LE SV-PL375 | 11.5 | |
| M40.5 P0.5 | 3Z4S-LE SV-PL405-SS | 12.5 | 3Z4S-LE SV-PL405 | 12 | |
| M52.0 P0.75 | 3Z4S-LE SV-PL520-SS | 19 | 3Z4S-LE SV-PL520 | 18.5 | |
| M55.0 P0.75 | 3Z4S-LE SV-PL550-SS | 21 | 3Z4S-LE SV-PL550 | 20.5 | |
| M62.0 P0.75 | 3Z4S-LE SV-PL620-SS | 28.5 | 3Z4S-LE SV-PL620 | 27.5 | |
Protection Cover Filter SV-GA Series
| Item | Model | Size | Weight (g) |
|---|---|---|---|
| Protection Cover Filter | 3Z4S-LE SV-GA225 | M22.5 P0.5 | 4 |
| 3Z4S-LE SV-GA255 | M25.5 P0.5 | 4.5 | |
| 3Z4S-LE SV-GA270 | M27.0 P0.5 | 5.5 | |
| 3Z4S-LE SV-GA305 | M30.5 P0.5 | 6.5 | |
| 3Z4S-LE SV-GA340 | M34.0 P0.5 | 8 | |
| 3Z4S-LE SV-GA355 | M35.5 P0.5 | 8.5 | |
| 3Z4S-LE SV-GA375 | M37.5 P0.5 | 9 | |
| 3Z4S-LE SV-GA405 | M40.5 P0.5 | 10.5 | |
| 3Z4S-LE SV-GA520 | M52.0 P0.75 | 15 | |
| 3Z4S-LE SV-GA550 | M55.0 P0.75 | 16 | |
| 3Z4S-LE SV-GA620 | M62.0 P0.75 | 25 |
Extension Tubes
| Lenses | Model | Contents |
|---|---|---|
| For C-mount Lens | 3Z4S-LE SV-EXR | Set of 7 tubes *1,*2 (40 mm, 20 mm,10 mm, 5 mm, 2mm, 1 mm, 0.5 mm) Maximum outer diameter: 30 mm dia. |
| For M42-mount Cameras | 3Z4S-LE VS-EXR/M42 | Set of 5 tubes *1 (20 mm, 10 mm, 8 mm, 2 mm, and 1 mm) Maximum outer diameter: 47.5 mm dia. |
| For Small Digital CCD Cameras | FZ-LESR | Set of 3 tubes (15 mm, 10 mm, 5 mm) Maximum outer diameter: 12 mm dia. |
*1 Do not use the 0.5-mm, 1.0-mm, and 2.0-mm Extension Tubes attached to each other. Since these Extension Tubes
are placed over the threaded section of the Lens or other Extension Tube, the connection may loosen when more than
one 0.5-mm, 1.0-mm or 2.0-mm Extension Tube are used together.
Reinforcement is required to protect against vibration when Extension Tubes exceeding 30 mm are used. When using
the Extension Tube, check it on the actual device before using it.
*2 These Extension Tubes are also available individually. Order using the following model number, replacing the box with
the desired length: 3Z4S-LE SV-EXR[]. (0.5, 1, 2, 5, 10, 15, 20, 25, 30, 40, 50 mm)
are placed over the threaded section of the Lens or other Extension Tube, the connection may loosen when more than
one 0.5-mm, 1.0-mm or 2.0-mm Extension Tube are used together.
Reinforcement is required to protect against vibration when Extension Tubes exceeding 30 mm are used. When using
the Extension Tube, check it on the actual device before using it.
*2 These Extension Tubes are also available individually. Order using the following model number, replacing the box with
the desired length: 3Z4S-LE SV-EXR[]. (0.5, 1, 2, 5, 10, 15, 20, 25, 30, 40, 50 mm)
Rear Converter Lens
| Model |
|---|
| 3Z4S-LE SV-1.5X *1 |
| 3Z4S-LE SV-2.0X *2 |
*1 In the following lenses, it is necessary to use it together with the extension tubes of 5 mm or more.
SV-0614H, SV-0814H, SV-1214H, SV-2514H, SV-0614V, SV-0813V
*2 In the following lenses, it is necessary to use it together with the extension tubes of 5 mm or more.
SV-0614H, SV-0814H, SV-1214H, SV-2514H, SV-0813V
SV-0614H, SV-0814H, SV-1214H, SV-2514H, SV-0614V, SV-0813V
*2 In the following lenses, it is necessary to use it together with the extension tubes of 5 mm or more.
SV-0614H, SV-0814H, SV-1214H, SV-2514H, SV-0813V

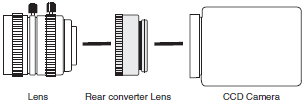

Configuration
M42 - F Mount Conversion Adapter
| Cameras | Lenses | Model |
|---|---|---|
| FH-S[]12 (M42 mount) | F mount | FH-ADF/M42-10 |
Polarizing Filter SV-PL Series
| Ambient temperature | Operating: 0 to 50°C, Storage: -10 to 60°C (with no icing or condensation) |
|---|---|
| Ambient humidity | Operating: 35% to 80%, Storage: 35% to 90% (with no condensation) |
Protection Cover Filter SV-GA Series
| Ambient temperature | Operating: 0 to 50°C, Storage: -10 to 60°C (with no icing or condensation) |
|---|---|
| Ambient humidity | Operating: 35% to 80%, Storage: 35% to 90% (with no condensation) |
