• Employs high-polymer-resistive Sensor with superior durability.
• Compact and lightweight.
ES2-HB-N / THB-N
產品特色
Detect Humidity within an Accuracy of ±3% in a Compact Body. Controller Set Provides Superior Humidity Control and Temperature/ Humidity Control.
| Name | Model |
|---|---|
| Humidity Sensor | ES2-HB-N |
| Temperature/Humidity Sensor | ES2-THB-N |
| Humidity Sensor Module (See note.) | ES2-M-N |
Note: This is a replacement item. One Module is provided with the ES2-HB-N/-THB-N. Always attach the Humidity Sensor
Module when using the ES2-HB/-THB. Approximately 5.5 VDC will be output for the humidity output if the Module is
not attached or is incompletely attached.
Module when using the ES2-HB/-THB. Approximately 5.5 VDC will be output for the humidity output if the Module is
not attached or is incompletely attached.
| Humidity Sensor section | High-polymer resistive | |
|---|---|---|
| Humidity detection range | 20 to 95% | |
| Humidity detection accuracy | ±3% (25°C, 40 to 80%) | |
| Power supply voltage | 24 VDC *1 | |
| Operating voltage range | 85% to 110% of power supply voltage | |
| Current consumption | 4 mA max. | |
| Humidity output | 1 to 5 VDC (for humidity of 0% to 100%) Permissible load impedance: 100 kΩ min. (Use a 1:1 connection when connecting to an E5CC/E5EC/E5AC.) |
|
| Temperature Sensor Section *2 | Platinum resistance thermometer | |
| Temperature detection range | 0 to 55°C | |
| Temperature output | Pt100: 3 wire *4 | |
| Class | JIS class B | |
| Communications cable length | 5 m | |
| Operating temperature and humidity range *3 | 0 to 55°C, humidity of 95% max. | |
| Storage temperature and humidity range *3 | -20 to 60°C, humidity of 95% max. | |
| Degree of protection | IP 20 | |
| Weight | ES2-HB-N: Approx. 37 g (excluding cables) ES2-THB-N: Approx. 39 g (excluding cables) |
|
*1. The maximum ripple voltage of 2% p-p max.
The recommended power supply is the OMRON S8FS-G or S8VS.
*2. ES2-THB-N only.
*3. Do not use or store the Sensor for an extended period at a humidity of 90% or more. With no icing or condensation.
*4. Pt100 (JIS C 1604-1997) is used for the measuring elements. Set Pt100 for input sensor type of the Temperature
Controller.
The recommended power supply is the OMRON S8FS-G or S8VS.
*2. ES2-THB-N only.
*3. Do not use or store the Sensor for an extended period at a humidity of 90% or more. With no icing or condensation.
*4. Pt100 (JIS C 1604-1997) is used for the measuring elements. Set Pt100 for input sensor type of the Temperature
Controller.

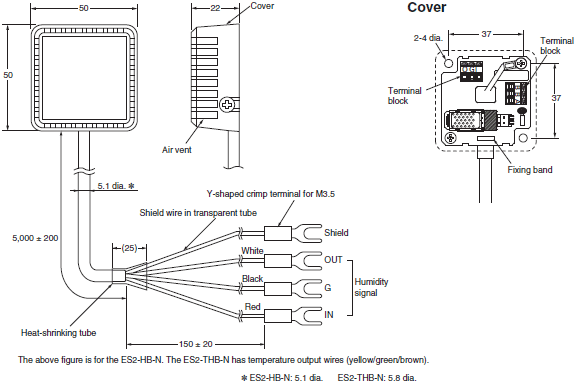

（單位：mm）
ES2-HB-N Humidity Sensor
ES2-THB-N Temperature/Humidity Sensor
ES2-M-N Humidity Sensor Module
Note: Firmly insert the connector all the way in when mounting the ES2-M-N to the Sensor.
