CK3W-PD048

CK3W-PD048

產品特色
Supplies power to the CK3M Controller
商品洽詢
- 產品描述 - 種類 額定/性能 外觀尺寸 型錄 操作手冊 CAD

• 24 VDC input

• The power supply status indicator shows operating status

Applicable standards

Ask your OMRON representative for the most recent applicable standards for each model.

Power Supply Unit

The models and outline of specifications are given below.

Product name Specifications Model
Power Supply Unit Rated output voltage: 5 VDC/24 VDC
Maximum output power: 5 VDC 23 W, 24 VDC 55 W		 CK3W-PD048

Applicable Wires

Using Ferrules

If you use ferrules, attach the twisted wires to them.
Observe the application instructions for your ferrules for the wire stripping length when attaching ferrules.
Always use plated one-pin ferrules. Do not use unplated ferrules or two-pin ferrules.

The applicable ferrules, wires, and crimping tools are listed in the following table.

Manufacturer Ferrule model Applicable wire
(mm2 (AWG))		 Crimping Tool
(applicable wire size given in parentheses)
Phoenix Contact AI0,25-8 0.25 (#24) Phoenix Contact
CRIMPFOX 6 (0.25 to 6 mm2, AWG24 to 10)
AI0,5-8 0.5 (#20)
AI0,75-8 0.75 (#18)
AI1,0-8 1.0 (#18)
AI1,5-8 1.5 (#16)
Weidmüller H0.25/12 0.25 (#24) Weidmüller
PZ6 Roto (0.14 to 6 mm2, AWG26 to 10)
H0.34/12 0.34 (#22)
H0.5/14 0.5 (#20)
H0.75/14 0.75 (#18)
H1.0/14 1.0 (#18)
H1.5/14 1.5 (#16)

Using Twisted or Solid Wires

Wire type Conductor cross-sectional area Conductor length
(stripping length)
Solid wire 0.2 to 4 mm2 8 mm
Twisted wire 0.2 to 2.5 mm2 8 mm

Required Tools

Use a flat-blade screwdriver to remove wires.
The recommended screwdriver is as follows.

Model Manufacturer
SZF 0-0,4X2,5 Phoenix Contact

General Specifications

This section describes the Motion Controller specifications.

Item Specification
Enclosure Mounted in a panel
Grounding Method Ground to less than 100 Ω.
Operating
Environment		 Ambient Operating
Temperature		 0 to 55°C
Ambient Operating
Humidity		 10% to 95% (with no condensation or icing)
Atmosphere Must be free of corrosive gases.
Ambient Storage
Temperature		 -25 to 70°C (with no condensation or icing)
Vibration
Resistance		 Conforms to IEC 60068-2-6.
5 to 8.4 Hz with 3.5-mm amplitude,
8.4 to 150 Hz, acceleration of 9.8 m/s2
100 min each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total)
Shock Resistance Conforms to IEC 60068-2-27.
147 m/s2, 3 times each in X, Y, and Z directions
Insulation Resistance 20 MΩ min. between isolated circuits (at 100 VDC)
Dielectric Strength 510 VAC between isolated circuits for 1 minute with a leakage current of 5 mA max.
Applicable Standards cULus, EU: EN 61326, RCM, KC, EAC *1

*1. The CK5M CPU Unit and CK5W-EXS01 are not EAC-compliant products.

Specifications

The specifications are shown below.

Item Specification
Power supply voltage 24 VDC
Allowable power supply voltage range 20.4 to 26.4 VDC
Power consumption 101.7 W max.
Rated output voltage 5 VDC/24 VDC
Maximum output power *1 5 VDC 23 W
24 VDC 55 W
Isolation method Not isolated

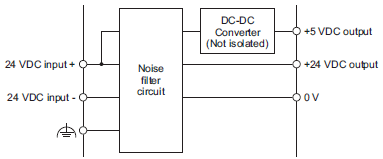

Circuit configuration 3727_sp_2_1
Weight 130 g max.
Dimensions (height × depth × width) 90(H)/80(D)/45(W)

*1. Internal components in the Power Supply Unit may deteriorate or be damaged if the Power Supply Unit is used for an extended period of time exceeding the power supply output capacity or used when the outputs are shorted.

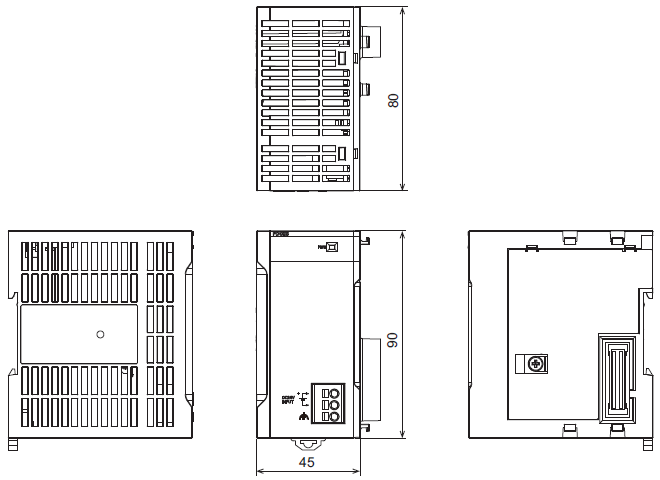

（單位：mm）

Power Supply Unit

CK3W-PD048 外觀尺寸 1
