| Name | Model | |||
|---|---|---|---|---|
| Resolver | Shaft: 10 dia. | Standard model | 3F88L-RS17 | |
| High-torque model | 3F88L-RS17T | |||
| Shaft: 6 dia. | Connector type | 3F88L-RS15 | ||
| Lead-wire type | 3F88L-RS15W | |||
| Resolver Extension Cable with Connectors on Both Ends |
2 m | 3F88L-CR002C | ||
| 5 m | 3F88L-CR005C | |||
| 10 m | 3F88L-CR010C | |||
| 20 m | 3F88L-CR020C | |||
| RS15 Resolver Cable with Connectors on Both Ends |
3 m | 3F88L-CR003NA | ||
| 5 m | 3F88L-CR005NA | |||
| 10 m | 3F88L-CR010NA | |||
| 15 m | 3F88L-CR015NA | |||
| 20 m | 3F88L-CR020NA | |||
| RS15W Resolver Cable with Connector on One End |
3 m | 3F88L-CR003SA | ||
| 5 m | 3F88L-CR005SA | |||
| 10 m | 3F88L-CR010SA | |||
3F88L-RS15 / RS17
產品特色
Superior Environmental Resistance and Reliability
Resolvers are available in four types to enable connection to any Cam Positioner. And they fully support 360 and 720 resolutions. Select a Resolver based on the following items.
1. Shaft diameter: 6 mm or 10 mm
2. Shaft-load tolerance: 98 N or 196 N
3. Friction torque: Normal or high torque
4. Connections: Connector, lead wires, or cable
Resolver Specifications
| Item | Model | 3F88L-RS17 | 3F88L-RS17T | 3F88L-RS15 | 3F88L-RS15W |
|---|---|---|---|---|---|
| Appearance |
 |
 |
 |
||
| Shaft diameter | 10 mm dia. | 6 mm dia. | |||
| Shaft-load tolerance | Radial: 196 N max., thrust: 196 N max. | Radial: 98 N max., thrust: 98 N max. | |||
| Friction torque | 12 mN·m max. | 49 to 147 mN·m | 2.9 mN·m max. | ||
| Vibration resistance | Frequency range: 10 to 500 Hz, amplitude: 1.5 mm or 98 m/s2 whichever is smallest, test period: 2 h each in X, Y, and Z directions |
||||
| Shock resistance | 4.9 km/s2 three times each in X, Y, and Z directions | ||||
| Degree of protection | IP52f (drip-proof and oil tight) (JEM) | ||||
| Maximum cable length | 100 m | ||||
| Ambient operating temperature |
−10 to 80°C | ||||
| Connection method | Cable (3 m, with connectors on both ends) | Connector | Lead wires (350 mm) | ||
| Case color | Munsell 5Y3/1 | Munsell N1.5 | |||
| Mounting method | Flange mounting (flange strength: 245 N) | Servo mounting (mounting latch included) | |||
（單位：mm）
Note: All units are in millimeters unless otherwise indicated.

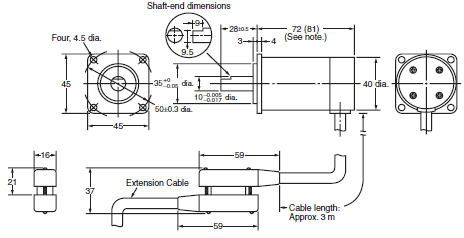

3F88L-RS17/RS17T
Note: Dimensions in parentheses are for the 3F88L-RS17T.

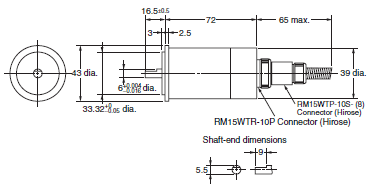

3F88L-RS15

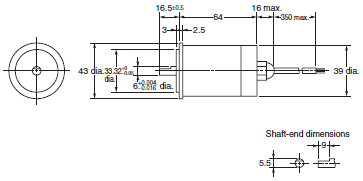

3F88L-RS15W
